\(QS38_{24}^{(1)}\)
Description
Phase Portrait
Topological Invariants
| TCSP | Fin Sep | Inf Sep |
|---|---|---|
| \(38\) | \(432\) | \(321201\) |
Example
The quadratic differential system
\[\begin{cases} \dot{x} = (1-e) \, x^{2}+2 \, h \, x \, y+(n-1-2 \, h) \, y^{2} \\ \dot{y} = y+c \, (1-e) \, x^{2}+(2+2 \, h-n) \, (1-e) \, x \, y-2 \, c \, x \, y+(c-2-2 \, h+2 \, n) \, y^{2} \end{cases}\]
with parameters: \(h = \frac{-41}{400}, \quad c = \frac{11}{10}, \quad n = \frac{4}{5}, \quad e = 0.001\)

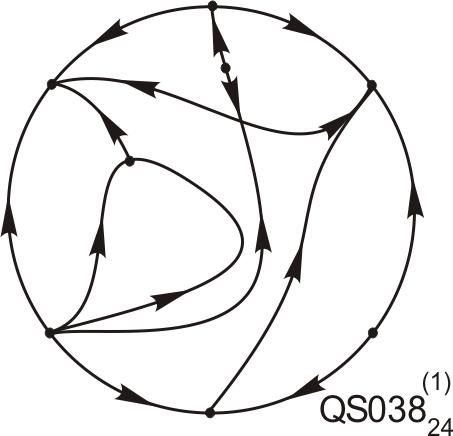

has the following phase portrait done with P4. If you want, you may download the P4 file here.
The phase portrait appears in the following papers
- With name \(U^1_{A45}\) in {J. C. Artés, J. Llibre and A. C. Rezende}, Structurally unstable quadratic vector fields of codimension one, Birkhäuser/Springer, Cham, 2018, vi+267 pp.
Bifurcations in codimension 0
- Bifurcation interface between the codimension 0 portrait \(QS25_{1}^{(0)}\) and \(QS10_{12}^{(0)}\).
